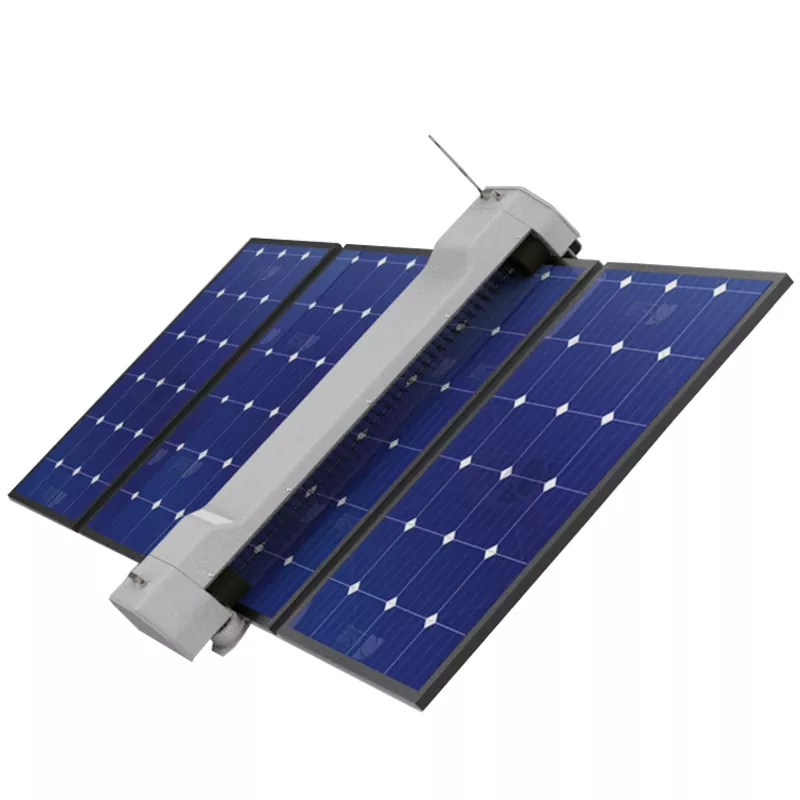

Intelligent Solar Cleaning Robot

Suzhou Ruitai is a manufacturer of Intelligent Solar Cleaning Robot, we can offer free samples and 5-year warranty for our products.

For this cleaning robot, it supports autonomous navigation, smart path planning, automatic position correction, and obstacle crossing, allowing it to operate smoothly across PV module surfaces.

It supports waterless or dry-cleaning methods and can achieve self-powered operation through integrated PV panels and lithium batteries.

With remote cloud control and multi-robot coordination, it serves as a key piece of equipment for intelligent operation and maintenance in PV power plants.

Ruitai Competitive Advantages

1. Long-Distance Operation

Ruitai's cleaning robot supports long-distance cross-string operation, with a working range of up to 1,500 meters.

It can travel directly on cross-module tracks and operate continuously for up to 14 hours, and it can work in the early morning and evening, without occupying normal power generation time.

2. Adaptation to Elevation Differences

The robot is designed to handle front-back and height-offset operation, with a maximum climbing angle of up to 30 degrees.

Its automatic correction system helps maintain stable movement, even when crossing height differences of 2–3 cm.

3. Resilience in Challenging Environments

With strong adaptability and weather resistance, it can operate normally under harsh natural conditions such as extreme cold, salt spray, and sandstorms.

It also features a maintenance-free transmission system, lightweight structure, automotive-grade surface treatment, and can be customized according to different project requirements.

Product Parameter

Operational Recommendations

1. Initial Use

Perform a no-load test run of the Intelligent Solar Cleaning Robot first to verify that path planning, obstacle avoidance, and edge detection functions are operating correctly.

2. Parameter Settings

Travel speed: Range of 12–20 m/min; reduce speed to enhance cleaning effectiveness when dust accumulation is heavy.

Cleaning pressure: Adjust based on module type; increase pressure appropriately for bifacial glass modules, but reduce pressure for thin-film modules.

3. Multi-Robot Coordination

When operating multiple robots, designate cleaning zones in advance to avoid overlapping paths or mutual interference.

4. Extreme Weather Precautions

Immediately suspend operations and move the robot to a safe storage location during heavy rain, thunderstorms, or wind speeds exceeding 10 m/s.

FAQ

Q: What is the investment cost and payback period for a 1 MW power plant?

A: The investment cost of the robot needs to be calculated based on the installation type of the power plant and the length of the arrays. In simple terms, the more module area one robot can clean, the lower the overall cost per MW will be.

The payback period depends not only on the total investment, but also on the pollution level of the rooftop or site. Usually, the heavier the dust, sand, or dirt accumulation, the greater the power generation improvement and project revenue.

Based on previous customer experience, the average payback period is around 1 to 1.5 years.

Q: Is your robotic cleaning more cost-effective than manual water cleaning?

A: Manual cleaning with water hoses requires ongoing water, labor, and equipment costs. It also has low cleaning efficiency and higher safety risks.

Our Intelligent Solar Cleaning Robot requires a one-time investment, with no long-term water costs and low maintenance needs. Over long-term use, the cleaning cost of the robot is much lower than manual cleaning.

In addition, it delivers better cleaning results and greater improvement in power generation.

Q: Is the product quality stable and durable?

A: The robot uses an industrial-grade design and is built for harsh outdoor environments, including wind, sand, high temperatures, and low temperatures.

Its core components are stable and reliable, with a normal service life of over 10 years and a failure rate much lower than similar products.

Q: Do you provide training after purchase, and how quickly can our team start using the robot?

A: We provide free on-site operation training to help your team get started quickly. The robot is designed with a simple and user-friendly control system, so operators can usually become familiar with daily operation within 1–2 days.

With one-click start and stop, routine use is easy and does not require professional technical staff.
