Intelligent PV Communication Box

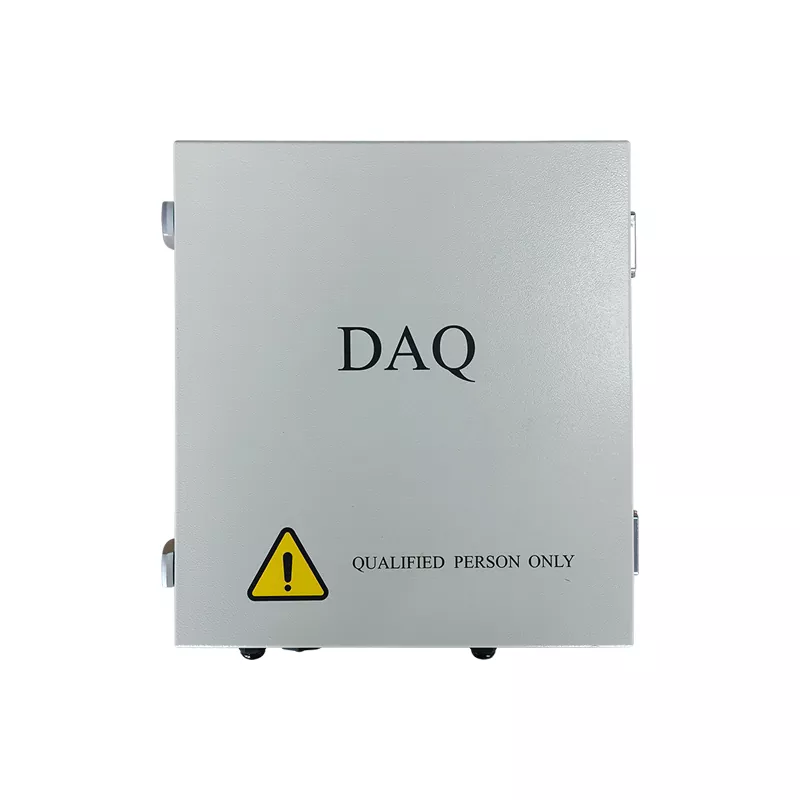

Suzhou Ruitai is a reliable factory that can offer Intelligent PV Communication Box. Our NCU series products maintain high-speed, stable data transmission even under harsh outdoor weather conditions and complicated electromagnetic interference environments.

When integrated with the Ruitai SCADA platform, the NCU supports fully automated remote operation and maintenance. This solution effectively raises power generation output and greatly reduces labor costs.

How Does the Suzhou Ruitai NCU Communication Box Operate?

1. Massive Data Collection and Translation (Connection Layer)

Physical Connection: Acting as a data hub for the entire power station, the NCU connects hundreds of field devices, including tracking control units (TCUs), inverters, and weather monitoring stations.

It supports multiple communication interfaces like RS485, ZigBee, and Bluetooth to establish physical links with all equipment.

Protocol Conversion: Devices made by different manufacturers (such as inverters) use different communication protocols, which creates compatibility barriers. Equipped with powerful built-in protocol conversion modules, the NCU supports mainstream protocols including Modbus, TCP/IP, and MQTT.

It converts all kinds of heterogeneous industrial signals into unified standard data formats, allowing smooth data exchange between every connected device.

2. Edge Intelligence for Real-Time Control (Computation and Control Layer)

AI Intelligent Decision-Making: This is the core strength of the NCU. It is not just a signal transmitter, but a "brain" with computing power.

It integrates advanced tracking algorithms and combines data from built-in sensors such as wind speed and snow load to calculate the optimal angle of the solar panels in real time.

Millisecond-Level Response: With edge computing capabilities, the NCU processes complex calculations locally and issues control commands within milliseconds.

It instantly sends control commands to the TCU to adjust panel angles for maximum energy output, eliminating delays caused by cloud-based processing.

3. A Stable and Reliable Information Backbone (Communication Layer)

Interference-Resistant Transmission: In complex outdoor electromagnetic environments, the Intelligent PV Communication Box features advanced lightning protection and anti-interference capabilities, ensuring that critical data is transmitted to the cloud or central monitoring system quickly, securely, and reliably.

Seamless Data Continuity: In the event of network instability, the NCU's edge computing capability enables local data buffering.

Once the connection is restored, data is automatically synchronized, ensuring complete integrity with no loss.

4. All-Weather System Protection (Protection Layer)

Precision Calibration: The system features dual GPS calibration to continuously correct positioning in real time, ensuring highly accurate solar tracking and optimal performance under all conditions.

Reliable Backup Protection: In the event of a sudden power outage, the built-in UPS seamlessly takes over, maintaining communication and control systems online while ensuring essential operations and critical data.

Full Specifications Table

▷ Characteristic parameters

▷ Functional parameters

▷ General parameters

How to Install the Intelligent PV Communication Box?

1. Selecting the Installation Location

Recommended locations: Inside a control cabinet near the PV array, inside a communication box, in a dedicated equipment cabinet, or in a well-sheltered and protected outdoor area.

Installation location requirements:

① Avoid areas with strong interference; keep away from high-power motors, high-frequency equipment, and high-voltage power lines.

② The installation location must ensure accessibility for personnel, ease of wiring, visibility of status indicators, and convenience for future maintenance.

③ Must meet environmental protection requirements.

2. Mounting the Device

Depending on the project structure, the NCU can be installed in a control cabinet, wall-mounted, or installed within an equipment enclosure.

Installation steps:

Step 1: Confirm the installation location.

Step 2: Secure the device using bolts, mounting brackets, and/or mounting rails.

Step 3: Check the installation status to ensure the device is level and stable, has sufficient wiring space, and enjoys good heat dissipation conditions.

3. Power Connection

During installation, verify the input voltage range, power polarity, and grounding requirements.

Connections include power input, protective grounding, and lightning protection.

Take care to avoid reverse polarity, voltage fluctuations, and operation without grounding. Ruitai provides complete wiring diagrams, installation manuals, and technical documentation; we also offer online guidance or can dispatch engineers with over five years of experience to the site for assistance.

4. Communication Connection between NCU and TCU

A key step in NCU installation is establishing communication with the TCU.

Typical connection: Tracking System → TCU → Communication Cable → NCU

Ensure correct communication line connections, proper device address configuration, and consistent communication parameters.

5. Connection between NCU and SCADA System

After connecting the field equipment, the NCU must be integrated into the monitoring system.

NCU → Ethernet / Fiber / 4G Network → SCADA Platform

Connect and commission the network configuration, IP address settings, and data point mapping, then perform communication tests.

FAQ

Q: Will network or power outages affect data transmission and system control?

A: The system is designed to handle such scenarios. The device is equipped with a built-in UPS backup battery that ensures continuous operation even during unexpected power interruptions. In addition, its edge computing capability enables local data caching and intelligent synchronization.

This ensures stable command execution and data reporting even during intermittent network disruptions. Once connectivity is restored, all data is automatically synchronized to the cloud, ensuring complete data integrity.

Q: Does this intelligent PV communication box support remote monitoring and fault diagnostics?

A: Yes, it fully supports real-time monitoring and remote control. When integrated with Ruitai's SCADA or IoT platform, operators can easily monitor the entire plant's performance without being on-site.

The system also enables remote diagnostics, allowing issues to be quickly identified and resolved, significantly reducing communication failures and lowering overall O&M costs.

Q: How does it ensure solar panels are always positioned at the optimal angle for maximum energy output?

A: The NCU is equipped with advanced AI-driven tracking algorithms and integrated environmental sensors, including wind and snow detection.

It continuously analyzes real-time conditions to intelligently adjust panel angles for optimal energy generation. In addition, dual GPS calibration ensures precise tracking accuracy, effectively improving the overall energy generation efficiency of the solar system.

Q: Is installation and configuration complicated? Does it support mobile setup?

A: The setup process is designed to be simple and efficient. In addition to standard PC-based configuration, the device also supports Bluetooth setup via mobile devices.

During on-site installation and commissioning, parameters can be quickly configured through a smartphone using low-power Bluetooth connectivity, significantly improving convenience and overall efficiency.
