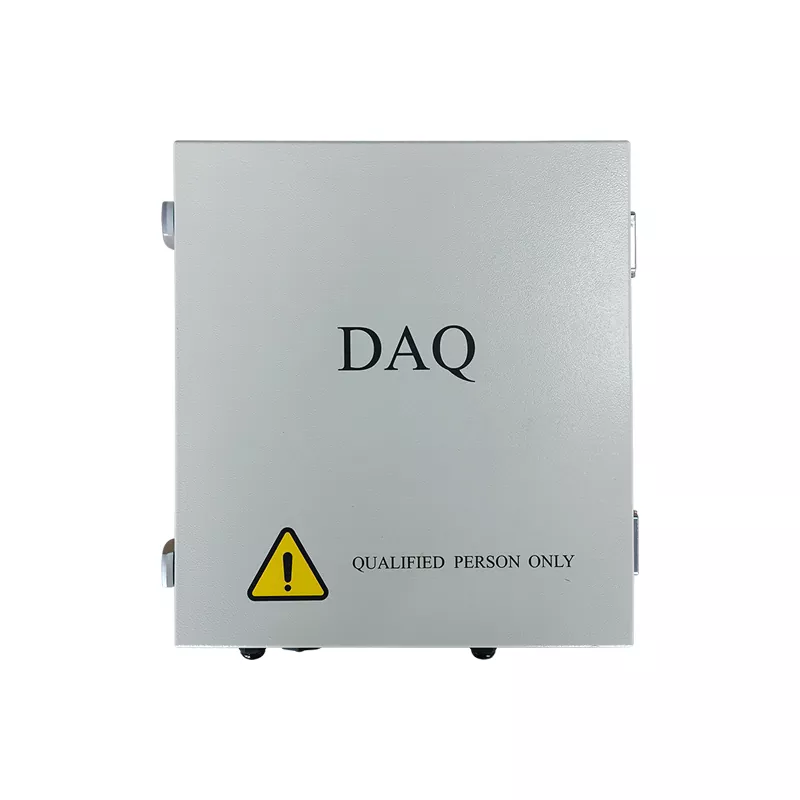

PV Module Network Communication Unit

Suzhou Ruitai can offer a high-performance PV module network communication unit, which is engineered to perform reliably in harsh environments, offering lightning protection, strong resistance to electromagnetic interference, and a wide operating temperature range.

Built with industrial-grade components, it supports multiple industry-standard protocols, including Modbus and TCP/IP, enabling seamless integration with a wide range of inverter and weather station brands.

The NCU enables millisecond-level command execution and real-time data communication, keeping critical information flowing quickly and reliably.

When integrated with Ruitai's automated SCADA platform, operators can remotely monitor and manage the entire plant with ease, improving operational visibility while reducing communication failures and maintenance costs.

Product Advantages

Customized Solutions: Every project is unique. That's why we adopt a "one project, one solution" approach, designing the communication architecture to match site-specific solar conditions and grid requirements.

Stable and Reliable: Proven in extreme environments, including high-altitude regions, deserts, and islands, with industry-leading operational reliability.

Fast and Efficient Support: Powered by an IoT platform for remote diagnostics, Ruitai PV Module Network Communication Unit enables fast fault identification and convenient spare parts replacement.

What Devices Can the NCU Be Paired With?

1. NCU + TCU + Solar Tracker

System Architecture: Solar Tracker → TCU → NCU → SCADA System

Applications: Single-axis and dual-axis tracking PV plants; large-scale, MW-level ground-mounted PV plants.

2. NCU + TCU + SCADA System

System Components: TCU, NCU, SCADA, servers, and databases.

Applications: Large-scale PV projects requiring digital management, such as centralized PV plants, unmanned stations, and smart energy projects.

3. NCU + Weather Station

To optimize PV tracking strategies, the NCU can integrate with meteorological monitoring equipment to collect environmental data, refine tracking strategies, and provide risk early warnings.

Connected Devices: Irradiance sensors, temperature sensors, wind speed sensors, weather stations.

4. NCU + Solar Cleaning Robot

System Architecture: Solar Cleaning Robot → NCU → SCADA Platform

Applications: Desert PV projects, plants in high-dust environments, and large-scale unmanned stations.

5. NCU + IoT Platform

System Architecture: PV Equipment → NCU → IoT Cloud Platform → Mobile App / Web Platform

Applications: Multi-region PV asset management and overseas PV projects.

Full Specifications Table

▷ Characteristic parameters

▷ Functional parameters

▷ General parameters

Configuration Recommendations

When selecting a PV Module Network Communication Unit (NCU), purchasers should avoid buying a standalone communication device in isolation; instead, the configuration should align with the project's overall architecture:

● Determine the number of TCUs → Select the appropriate NCU capacity

● Confirm communication distance → Choose the communication method

● Define O&M requirements → Configure the SCADA or IoT platform

● Consider environmental conditions → Specify the protection rating and protection modules

● Ensure scalability → Support future power plant upgrades

Looking to configure an NCU for a new PV project? Contact Ruitai today, and we will provide a preliminary proposal within 2–3 working days.

We are a manufacturer holding over 20 intellectual property rights and software copyrights, fully certified under ISO 9001 and CE standards; we can also provide reports from third-party testing agencies.

FAQ

Q: What are the key benefits of the PV Module Network Communication Unit for solar power plants?

A: The NCU series serves as the intelligent control center of the solar tracking system.

Integrating AI tracking algorithms, multi-protocol communication, and remote monitoring capabilities, it dynamically optimizes tracker positioning based on real-time weather and solar conditions.

This not only improves energy generation efficiency but also provides proactive protection during adverse weather conditions.

Q: Which communication protocols does the NCU support? Can it integrate with existing monitoring systems?

A: The NCU series is designed for seamless integration with both new and existing systems.

Supporting a wide range of industry-standard communication protocols—including ZigBee, Bluetooth, RS485, TCP, and MQTT—it easily connects with third-party SCADA platforms and cloud-based management systems.

This flexibility allows it to adapt to diverse project requirements while simplifying system deployment and expansion.

Q: How does the system protect tracker structures during extreme weather conditions such as high winds or heavy snowfall?

A: The system uses high-precision sensors to continuously monitor wind speed, snow accumulation, and other environmental conditions.

Combined with AI-driven adaptive control, it responds instantly to changing weather. When extreme conditions are detected, the system automatically adjusts the panels to a predefined safe position, helping prevent mechanical damage and ensuring reliable protection around the clock.
