Photovoltaic SCADA System

Solar power plants are often located in remote and harsh environments where maintaining large on-site O&M teams is neither practical nor cost-effective. When issues occur, relying solely on manual inspections can result in delayed fault detection, reduced operational efficiency, and unnecessary energy losses.

Our Photovoltaic SCADA System is specifically designed for these challenging scenarios. By integrating AI algorithms and IoT technology, acting as a 24/7 cloud-based control center for the solar plant, it enables faster fault identification, improved operational visibility, and more efficient maintenance management, helping maximize plant performance and reduce O&M costs.

How Does a Photovoltaic SCADA System Work?

1. Field Equipment Layer

The field equipment layer of the Photovoltaic SCADA system is responsible for generating and providing operational data.

Collected data includes power output, voltage and current, equipment status, environmental parameters, and fault information.

2. Data Communication Layer

The communication layer handles data transmission between field equipment and the SCADA platform.

Ruitai's SCADA system supports common communication methods, including RS485, Modbus RTU, Modbus TCP, Ethernet, fiber optic communication, and 4G/5G networks.

3. SCADA Server and Database Layer

This layer is responsible for data reception, processing, storage, and status analysis.

The system stores long-term operational data for use in power generation trend analysis, equipment performance evaluation, fault history tracking, and the optimization of O&M strategies.

4. Monitoring and Management Layer

O&M personnel manage the entire photovoltaic system via the SCADA software platform, enabling real-time monitoring and rapid identification of equipment status.

Core Highlights

1. TCU + NCU Dual-Core Coordination

Conventional Industry Approach: Many traditional tracking systems often lack sufficient control precision and are more likely to shut down under strong winds or complex weather conditions.

In addition, data between different substations is often isolated, making it difficult to achieve coordinated system-wide operation.

Ruitai's Core Strength: The system is built around two core components: the TCU (Tracker Control Unit) and the NCU (Network Control Unit).

The TCU continuously calculates the optimal tracking position and precisely controls the tracker drive system, enabling the photovoltaic modules to follow the sun's trajectory throughout the day and maximize solar energy capture.

The NCU serves as the communication and management hub, enabling efficient coordination between tracker groups while providing a secure gateway for local and remote system interaction.

Through reliable Zigbee communication, the TCU and NCU work seamlessly together to deliver stable performance, intelligent control, and dependable operation even in challenging environments.

2. Smart Cloud Platform Coordination

Conventional Industry Approach: After a fault occurs, troubleshooting often relies on manual inspections, with limited historical data available for analysis.

As a result, fault diagnosis can be time-consuming and inefficient.

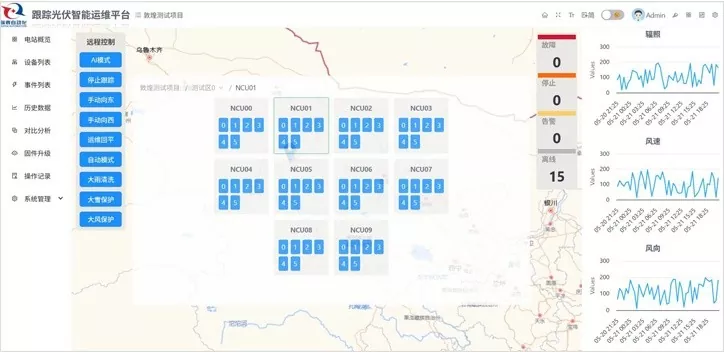

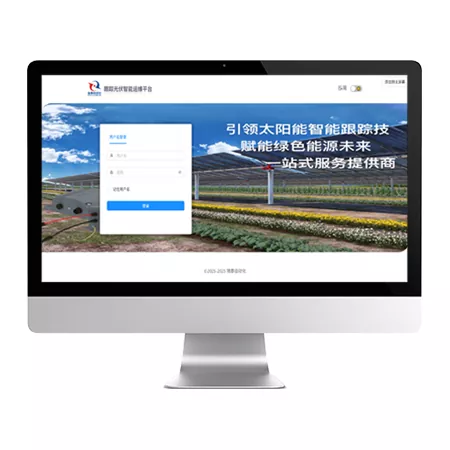

Ruitai's Intelligent Digital Solution: The Ruitai Intelligent Cloud Monitoring Platform integrates intelligent tracking, remote monitoring and control, data acquisition, and online analysis into a single platform. It provides real-time monitoring and recording of tracker operating data while dynamically displaying equipment status.

By securely storing operational data and key event logs, the platform provides valuable support for routine maintenance and fault diagnosis, creating a seamless management workflow from installation and commissioning to ongoing monitoring and O&M.

3. Open Ecosystem and Security Assurance

Customer Concerns: Can the new system integrate with existing platforms? How is data security protected?

Ruitai's Solution: The platform supports seamless integration with third-party power plant monitoring systems, enabling secure data sharing and eliminating information silos.

At the same time, advanced cybersecurity technologies are built into the system to protect operational data and communication networks and works in coordination with the mobile app and SCADA platform to provide customers with a truly secure and intelligent solar plant management experience.

What Benefits Does the Ruitai Photovoltaic SCADA System Deliver?

1. Unattended Operation

With powerful remote monitoring and control capabilities, the Photovoltaic SCADA System significantly reduces the dependence of desert solar power plants on on-site personnel, effectively addressing the challenges of harsh environments that are unsuitable for long-term staffing.

2. Maximized Energy Yield

By combining precise TCU control with intelligent platform analytics, the system ensures optimal solar energy utilization and helps maximize overall plant generation.

3. Enhanced O&M Efficiency

Through real-time analysis and historical data logging, maintenance teams can quickly identify and locate faults without extensive manual inspections, reducing response times and enabling more efficient, reliable, and secure asset management.

Why Choose Ruitai?

In vast deserts and Gobi regions, where manpower alone is often insufficient to meet the demands of efficient solar plant operation, Ruitai's Photovoltaic SCADA System integrates advanced AI, IoT technology, and solar tracking systems into a unified solution.

It is more than just a monitoring platform - it serves as a powerful digital tool for managing and protecting solar power plants in challenging environments.
