PV Monitoring and Data Acquisition System

Ruitai is a professional supplier, and you can rest assured to choose our software, PV Monitoring and Data Acquisition System. It helps plant owners and operators monitor the entire site in real time, clearly understand equipment status, and manage daily O&M work more efficiently and safely.

Why a PV Monitoring and Data Acquisition System Is Necessary?

As PV power plants continue to grow in scale, traditional management methods are no longer able to meet the needs of modern renewable energy projects.

1. Data silos and blind spots have become serious issues.

The operating status of a large number of devices cannot be monitored in real time, and faults are often discovered only after they have caused actual losses.

2. Extreme weather poses a major threat.

Harsh weather conditions such as strong winds and heavy snow can cause serious damage to tracker structures, while the lack of active protection mechanisms keeps the risk of asset damage high.

3. Grid dispatch requirements make it harder for power plants to respond accurately, increasing the risk of power curtailment or penalties.

In remote project sites, manual inspection is costly, inefficient, and difficult to manage, making it harder to ensure timely and accurate operational data.

Product Advantages

To address these challenges, Ruitai PV Monitoring and Data Acquisition System combines advanced software and reliable hardware to provide power plant operators with a more intelligent, efficient, and competitive O&M solution.

1. All-Weather Intelligent Protection

The platform shifts plant safety from passive repair to proactive protection. With built-in safety modes for strong wind, heavy snow, and limit protection, it works with AI algorithms and weather data to adjust the entire plant to a safe position when needed.

This helps reduce asset damage caused by extreme weather and improves the reliability of daily plant operation.

2. Core Four Capabilities

The platform is designed to meet the high-standard dispatch requirements of modern power grids through four key capabilities: visible, measurable, controllable, and adjustable.

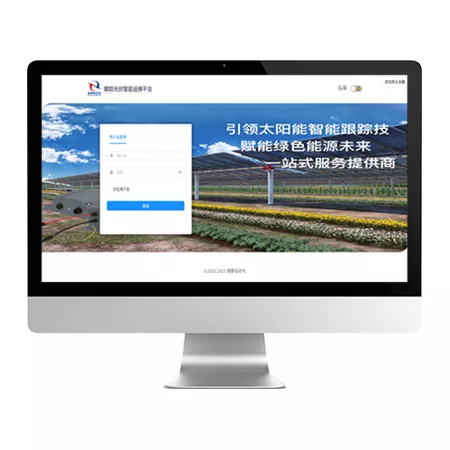

It uploads real-time data to the cloud for clear plant visibility, accurately measures key operating parameters for traceability, supports remote locking and shutdown during emergencies, and enables precise adjustment of active and reactive power to match grid requirements.

This helps ensure safe, compliant operation while supporting better power generation benefits for plant owners.

3. Full Lifecycle Support

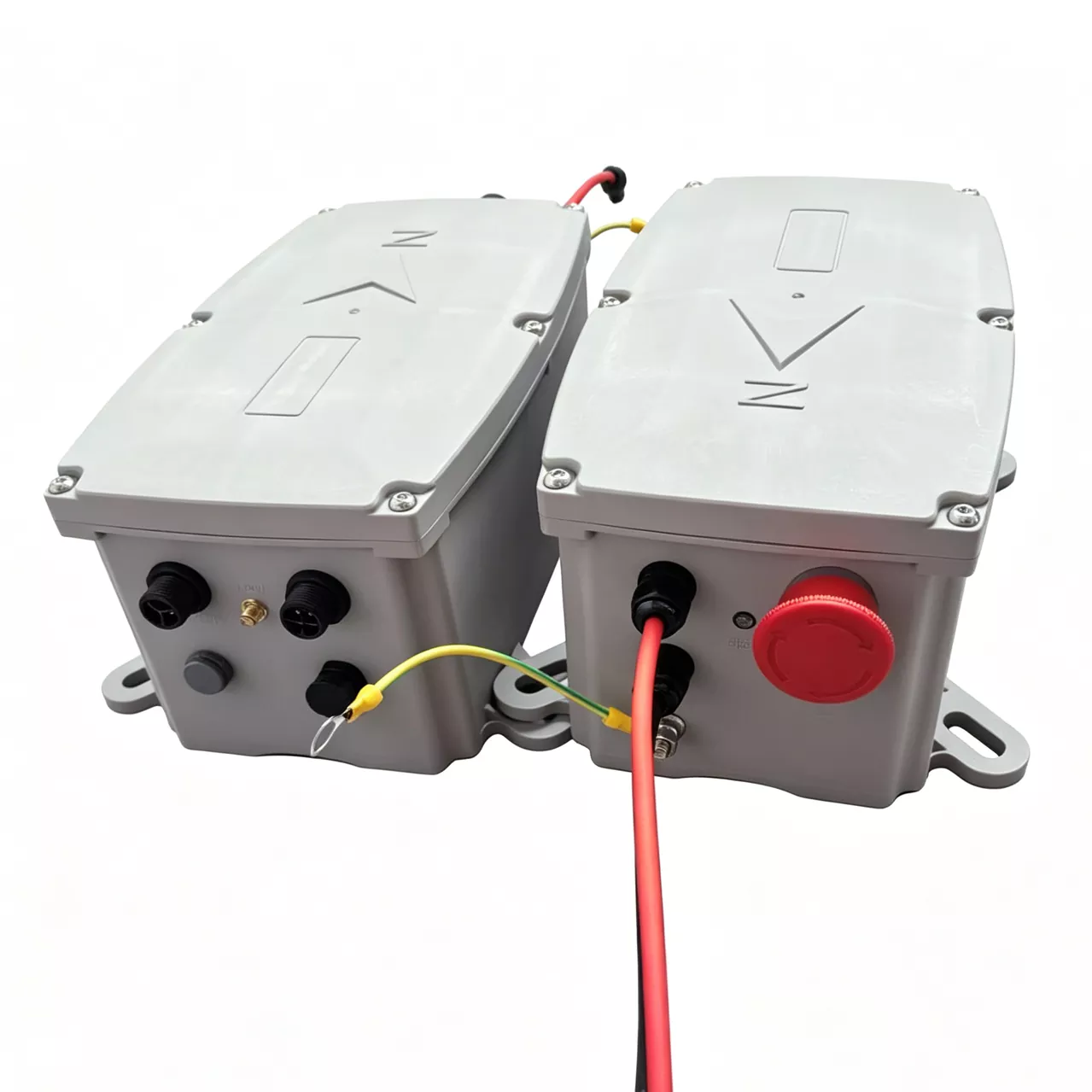

With TCU and NCU as the core hardware support, the platform works together with the mobile app and SCADA system to connect the entire process from installation and commissioning to daily operation and maintenance.

It breaks down data barriers, supports integration and forwarding to third-party platforms, and allows managers to understand the overall plant status without being on site.

4. Cost Reduction and Efficiency Improvement

The platform uses AI-based tracking optimization to continuously adjust tracking strategies under different weather conditions, maximizing sunlight utilization.

With accurate fault alerts and online analysis, it also helps reduce unnecessary manual inspections, lower overall O&M costs, and improve project return on investment.

Successful Cases

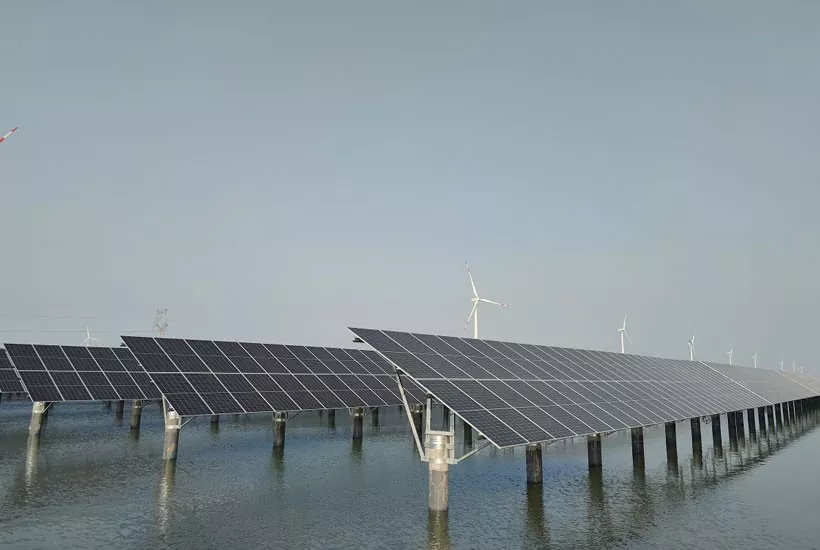

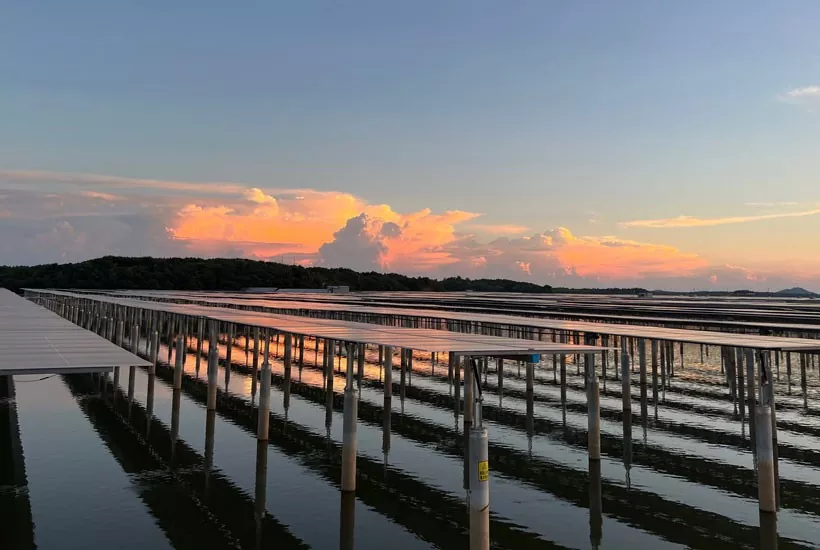

Ruitai PV Monitoring and Data Acquisition System and intelligent control system have been successfully deployed in many large-scale ground-mounted PV power plants in China and overseas, proving their reliability under various harsh environmental conditions.

Domestic High-Altitude and Gobi Desert Base Projects

In large-scale PV projects located in harsh environments such as Ningxia, Qinghai, Tibet, Gansu, and Inner Mongolia, where cold weather, strong wind, and heavy sand are common, our TCU system and Smart Cloud Platform have demonstrated excellent environmental resistance.

By working with micro weather stations and built-in protection strategies for strong wind and heavy snow, the system can automatically move tracker structures to a safe position during sandstorms and snowstorms.

This successfully prevents structural damage and supports stable, year-round power generation.

Yunnan Mountainous PV Plant with Complex Terrain

In mountainous regions such as Yunnan and southwest China, irregular terrain can create serious shading challenges for PV plants. To address this challenge, the project adopted an intelligent tracking system with 3D modeling and advanced optimization algorithms.

The system effectively reduced mountain shading losses and increased the plant's overall power generation by more than 20% compared with traditional fixed-tilt systems, significantly shortening the project's investment payback period.

Global Presence Across 50+ Countries

Ruitai is deeply rooted in China while expanding globally. Our solutions have been successfully exported to more than 50 countries and regions across Asia, Europe, the Americas, and Africa.

From high-temperature desert environments in the Middle East to high-salt coastal regions in Europe, Ruitai products have earned strong recognition and long-term trust from overseas customers through excellent stability, convenient modular installation, and powerful remote cloud-based O&M capabilities.

Ruitai Technical Support Services

1. 24/7 Remote Technical Response

Rapid Fault Diagnosis: The technical team receives equipment fault codes in real-time to pinpoint issues remotely.

Software & Algorithm Upgrades (OTA): Remote OTA firmware update services continuously optimize tracking control algorithms, anti-stow/anti-drop algorithms, and BMS battery management strategies.

2. On-site Deployment & Installation Guidance

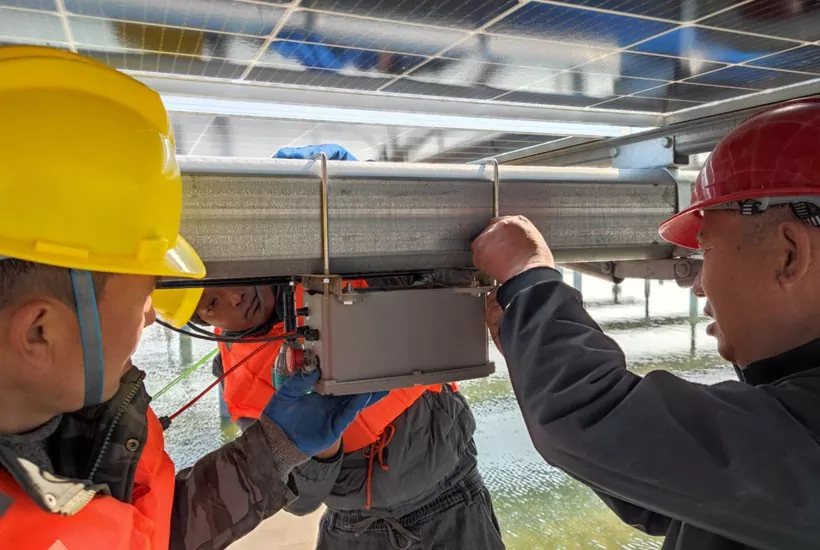

Expert On-site Support: For large-scale centralized ground-mounted power plants or key overseas projects, field engineers with over five years of experience can be deployed to assist with installation, commissioning, and collaborative testing.

O&M Personnel Training: Standardized training courses ensure that power plant O&M teams can master equipment operation within one hour.

3. Modular Spare Parts & Rapid Supply Chain

Quick-Release Design (Plug-and-Play): Core components feature a modular, quick-release design, allowing on-site O&M personnel to replace parts within 15 minutes without specialized tools.

OEM Spare Parts Kits: Common wear-and-tear parts are supplied alongside the main equipment; long-term standalone procurement of OEM parts and rapid shipping from overseas warehouses are also available.
