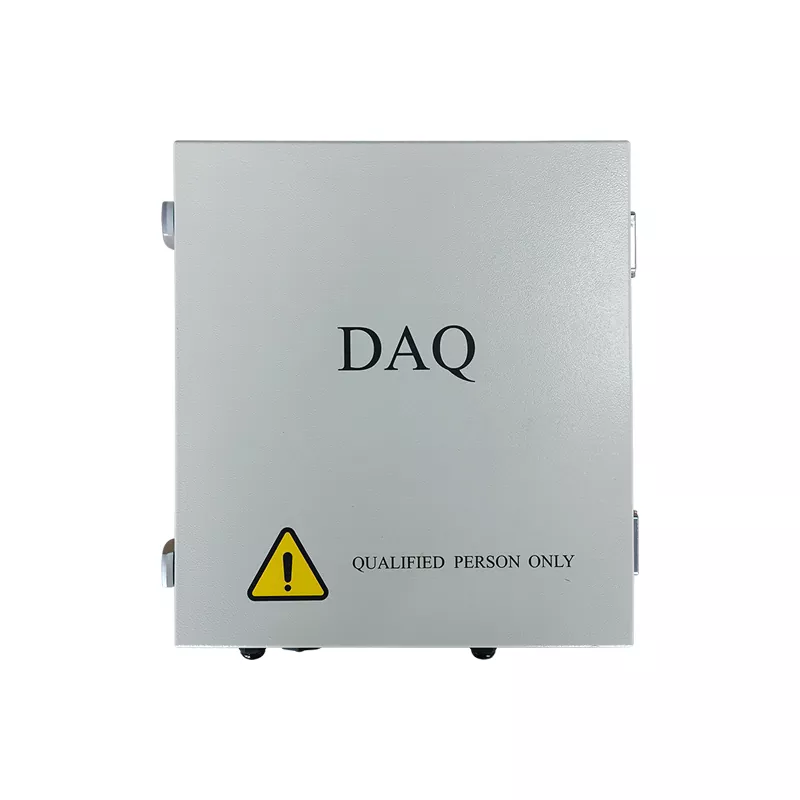

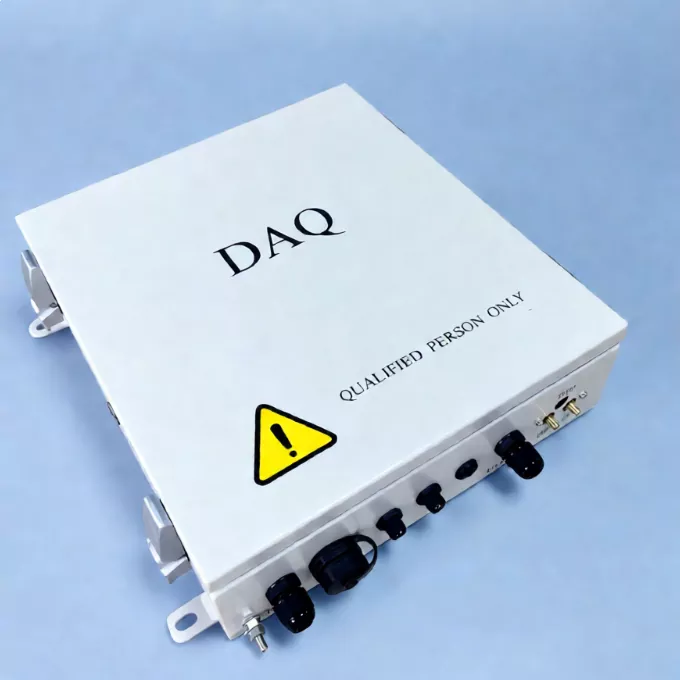

PV Network Control Unit

Suzhou Ruitai is a reliable manufacturer of PV Network Control Unit, this high-performance NCU supports reliable communication and efficient O&M in complex outdoor environments. Its advanced network topology and protection architecture help ensure uninterrupted system operation.

Combined with comprehensive solutions and after-sales support, it simplifies O&M work and significantly reduces labor costs throughout the solar power plant lifecycle.

Core Algorithm

The PV Network Control Unit serves as both a communication gateway and the execution unit for intelligent tracking algorithms. Through high-frequency sensing and precise control, it adjusts tracker positions in real time.

Millisecond-Level Micro-Weather Sensing: Integrated wind speed, wind direction, and other sensors collect environmental data every 0.5 seconds, completing the process from sensing to decision-making within milliseconds.

AI Self-Learning Algorithms: Built-in algorithms, including Super Track, combine AI, big data, micro-shading models, and bifacial irradiance models. In complex terrain or diffuse-light conditions, the system automatically calculates the optimal tracker angle to maximize energy capture.

Multi-Level Wind Protection: The system adjusts tracker positions according to wind direction, keeping PV modules parallel to the wind to reduce wind impact. It supports three wind-protection levels:

Level 1 is triggered when wind speed reaches ≥10 m/s for 60 seconds;

Level 2 at ≥12 m/s for 30 seconds;

Level 3 at ≥15 m/s for 5 seconds.

At Level 3, the tracker moves directly to a 5° safety stow position. When wind speed remains at ≤8 m/s for 300 seconds, the system automatically returns to tracking mode.

Full Specifications Table

▷ Characteristic parameters

▷ Functional parameters

▷ General parameters

All-Scenario Solutions

Distributed Multi-Hop Relay Networking

For widely distributed solar equipment, the system provides a power line carrier (PLC) communication solution.

A data collector creates a multi-level routing table, allowing devices without a direct connection to communicate through primary devices using multi-hop relays.

This eliminates the need for additional relay equipment and helps prevent communication issues caused by long installation distances.

Predictive Intelligent Inspection

Combined with drone infrared scanning and edge-based fault diagnosis, the system helps identify aging cables and overheating risks at connection points.

AI analyzes real-time current and voltage deviations to detect potential faults early, shifting O&M from reactive repair to proactive prevention.

Tiered Emergency Response

The system follows a standardized emergency response process when NCU communication is interrupted.

In sunny conditions, it can switch to a local optimal tilt angle to maintain basic power generation.

During extreme weather, trackers can be quickly moved to a safe position through a backup communication link or on-site manual operation to reduce potential losses.

Ruitai Services and After-Sales Support

Firmware and Parameter Management

Firmware updates are provided every six months to address known issues. Parameters can be configured automatically through a mobile app or computer, while intelligent device association helps reduce commissioning time after module replacement.

Expert Technical Support

Suzhou Ruitai provides expert technical support for complex chip-level faults or unresolved issues, assisting with in-depth inspection and communication protocol troubleshooting.

Safety Procedures and Technical Training

All operation and maintenance work follows strict safety procedures, including disconnecting power before inspection and wearing insulated gloves.

Regular technical training helps O&M teams improve their independent maintenance capability and keep equipment operating reliably over the long term.

FAQ

Q: What devices can be connected to an NCU?

A: The PV Network Control Unit can connect to a wide range of intelligent PV devices, including TCUs, solar trackers, PV communication boxes, weather stations, sensors, SCADA systems, and IoT monitoring platforms.

Q: Can the NCU operate in harsh outdoor environments?

A: Yes. Many PV power plants are installed in deserts, Gobi regions, or areas with extreme cold. Ruitai’s industrial-grade NCU features an IP65 protection rating, an operating temperature range of -40°C to 70°C, electromagnetic interference (EMI) resistance, and lightning/surge protection.

Q: Can the NCU be used for fixed-tilt PV systems?

A: Yes, though its primary value lies in scenarios requiring device communication management.

For fixed-tilt PV systems that incorporate multiple inverters, environmental monitoring equipment, or intelligent O&M systems, the NCU can also be used for data management.
