Intelligent PV Tracker

Utility-scale solar power plants are often deployed in deserts, Gobi regions, and coastal areas, where they face severe challenges such as extreme temperature variations, sand and dust exposure, and salt-spray corrosion throughout the year.

To address these challenges, Ruitai delivers a highly reliable Intelligent PV Tracker solution that integrates robust hardware protection, intelligent tracking control, and smart operation and maintenance capabilities.

The solution is designed to ensure stable operation, maximize energy yield, and support long-term project performance in demanding environments.

IP65-Rated Protection

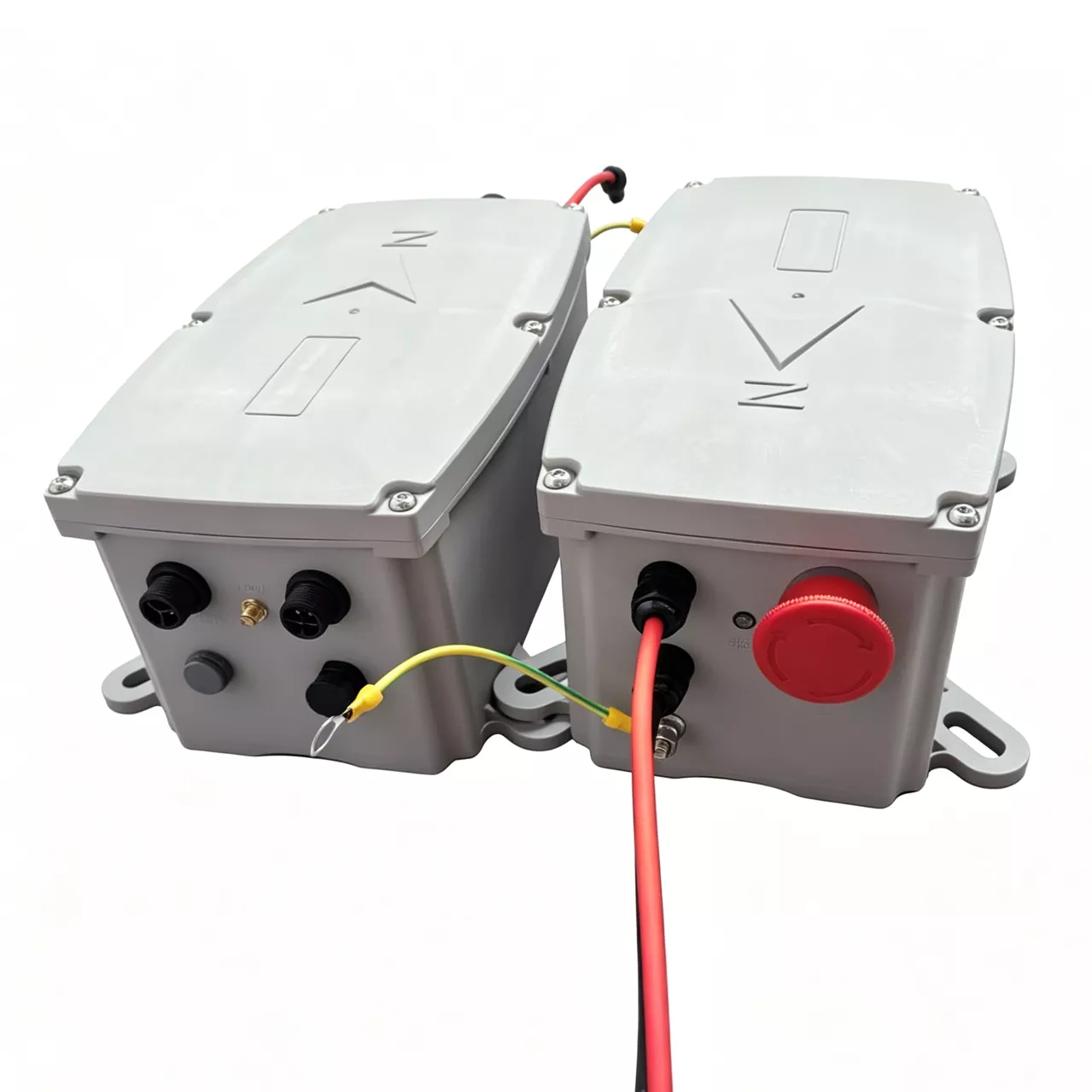

Built for demanding outdoor environments, the Ruitai Intelligent PV Tracker TCU is designed with durability and reliability in mind. The enclosure meets the industrial-grade IP65 protection standard, providing complete protection against dust ingress and resistance to water spray.

Careful material selection and robust structural design ensure reliable performance even in harsh operating conditions. Whether facing severe sandstorms, sudden heavy rainfall, or high-humidity coastal environments, the equipment can maintain stable long-term operation, significantly reducing failure rates caused by environmental factors.

System Parameters

Mechanical Parameters

Electrical Parameters

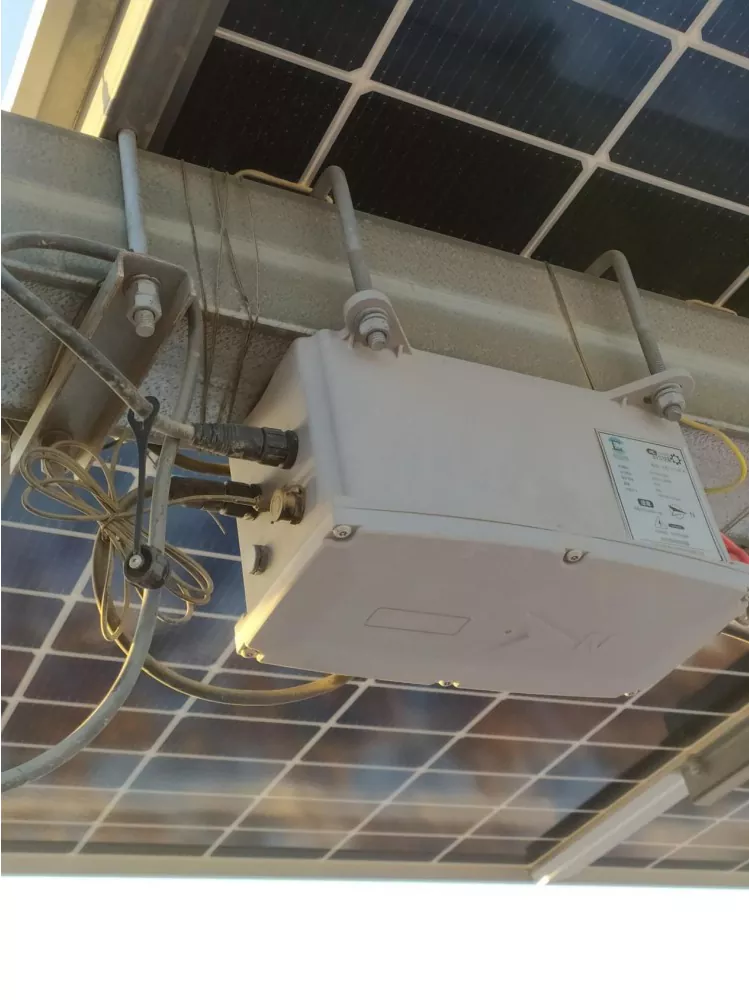

Product Installation

To address customers' concerns about installation efficiency, our system is designed with a highly modular architecture.

The Intelligent PV Tracker supports plug-and-play functionality and, combined with standardized interface designs, greatly simplifies on-site wiring and assembly processes.

At the same time, the system includes four built-in stow strategies for high wind, snow accumulation, flooding, and hail, which can be flexibly configured according to local weather conditions and tracker structure requirements.

This streamlined design reduces installation time, improves deployment efficiency, and makes project commissioning faster and more convenient.

What Extreme Environmental Conditions Can Our TCU Adapt To?

In addition to its basic IP65-rated physical protection, the Intelligent PV Tracker can be equipped with various weather sensors to function as a micro weather station.

By collecting real-time environmental data and performing intelligent analysis, the system can automatically adjust the tracker to a safe protection position during extreme weather conditions.

To address different environmental challenges, the system features four dedicated protection strategies:

1. High wind mode

When strong winds are detected, the tracker automatically adjusts to an optimized stow angle to reduce wind loads and minimize structural stress.

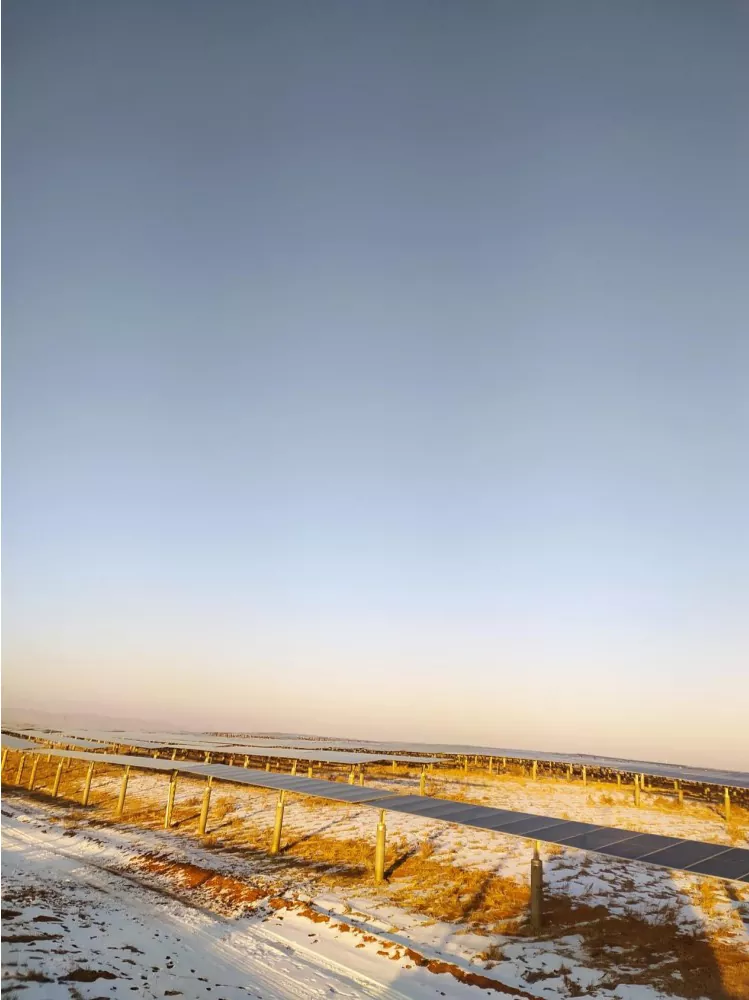

2. Snow mode

During heavy snowfall, the tracker adjusts its tilt angle to reduce snow accumulation on the modules, helping prevent excessive weight loads and maintaining system safety.

3. Flood mode

Designed for extreme rainfall and flooding scenarios, this mode helps protect critical equipment and tracker foundations from potential water-related risks.

4. Hail mode

Quickly moves the tracker to a flat protective position to minimize the risk of hail impact and microcracks on the modules.

This proactive protection mechanism provides a strong safeguard for both the tracker structure and photovoltaic modules, ensuring long-term stable operation of the solar power plant under a wide range of extreme weather conditions.

Power Generation Benefits

Power generation performance is the key factor when evaluating a solar tracking system. Our intelligent tracking algorithm goes beyond the limitations of traditional systems that rely only on direct sunlight.

It comprehensively considers direct, diffuse, and reflected irradiance to accurately adjust the tracker to the optimal position. Particularly under high-diffuse-light conditions such as cloudy or overcast weather, as well as low-irradiance conditions during rainfall, the system automatically adjusts the tracker toward a near-horizontal position to maximize the capture of available solar energy.

This intelligent strategy not only improves energy yield under varying weather conditions but also reduces unnecessary tracker movement, minimizing mechanical wear and helping extend the service life of the equipment.

Ruitai Quality Commitment

Our commitment goes beyond hardware delivery.

By combining intelligent protection strategies with integrated micro-weather monitoring, the Intelligent PV Tracker continuously monitors site conditions and proactively responds to potential risks.

Continuous data monitoring and automated protection functions help reduce manual inspection requirements and minimize maintenance and recovery costs.

In the event of extreme weather or unexpected incidents, the system responds rapidly to protect critical assets, reduce operational risks, and support stable, long-term plant performance.
