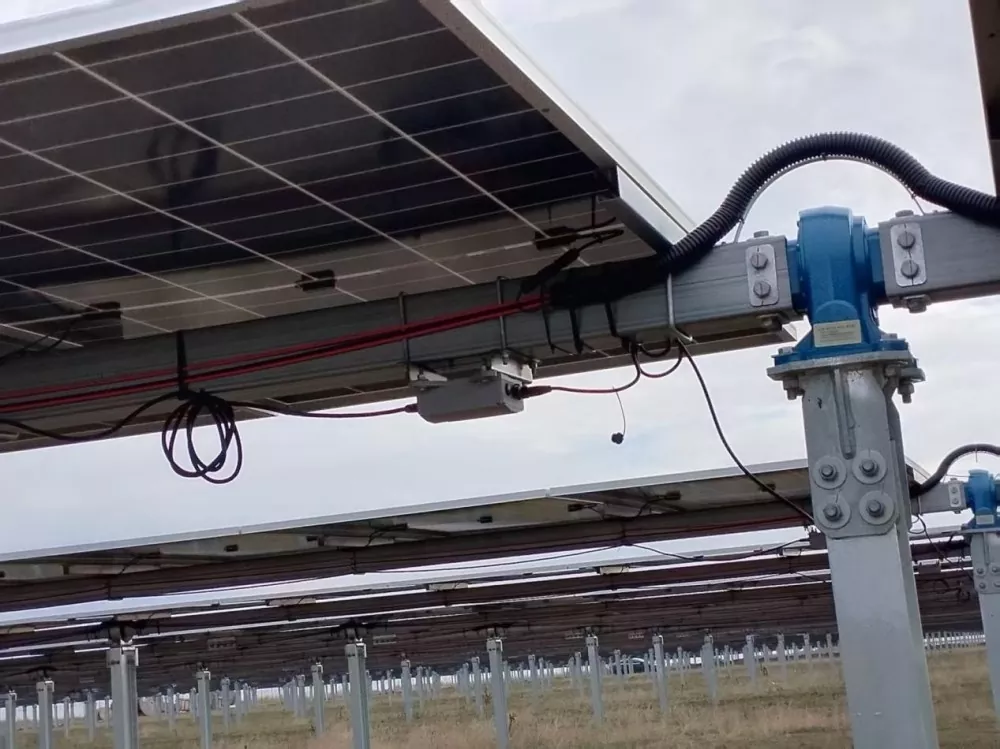

Single-Axis PV Tracker
Suzhou Ruitai is supported by a team of 12 experienced experts specializing in structural design, electronics engineering, motion control algorithms, and software development. With strong expertise across both hardware and software, our team delivers reliable, innovative, and practical Single-Axis PV Tracker (TCU) solutions tailored to the evolving needs of the solar industry.
Suzhou Ruitai is a professional manufacturer and supplier in China, our single-axis PV tracker TCU uses a high-precision tracking strategy that combines advanced solar positioning calculations with real-time sensor feedback.
This approach enables the tracking system to accurately follow the sun throughout the day, helping maximize solar energy capture and improve overall power generation performance.
Core Technical Specifications
| Parameter Category | Technical Specifications / Functional Description |
| Core Algorithm | Suzhou Ruitai's intelligent tracking algorithm continuously optimizes tracker positioning by analyzing direct, diffuse, and reflected sunlight. |
| Low-Light / Cloudy-Day Strategy | Automatically adjusts tracker positions during cloudy or low-light conditions to maximize energy production while reducing mechanical wear. |
| Weather Monitoring | Supports multiple weather sensors for real-time environmental monitoring and intelligent system control. |
| Extreme Weather Protection | Includes four dedicated protection modes for high winds, snow, flooding, and hail. |
| Product Warranty | 5 years |
| After-Sales Support | Free repair and replacement, 24/7 technical support, regular inspections and system health assessments, fast response service, and operation and maintenance training. |
System Parameters
|
Product Model |
RT-TK-EP-V1 |
Compatible Motor Power |
≤300W (Customizable) |
|
Control Mount Type |
Single-axis Horizontal Mount / Single-axis Tilted Mount |
System Daily Power Consumption |
≤0.2kWh |
|
Compatible Drive System |
Slewing Gearbox / Electric Actuator |
Control Method |
Astronomical Algorithm + Angle Feedback |
|
Compatible Motor Type |
Brushed Motor / Brushless Motor |
||
Mechanical Parameters
|
Dimensions |
290*190*130mm |
|
Housing Material |
PC+UV |
|
Waterproof Rating |
IP65 |
Electrical Parameters
|
Power Supply |
L+N 90~264VAC |
Protection Wind Speed |
10~20m/s (Adjustable) |
|
Output Voltage |
24VDC |
Communication Method |
Lora / Zigbee / RS485 |
|
High Wind Protection |
Yes |
Tracking Angle Range |
±60° (Adjustable) |
|
Nighttime Reset Protection |
Yes |
AI Control Mode |
Optional |
|
Rotation Protection |
Yes (Limit Switch, Overcurrent, Undervoltage) |
Network Backend |
Optional |
|
Anti-shading Tracking |
Yes |
Operating Temperature |
-40~65℃ |
AI-Powered Intelligent Control
The Single-Axis PV Tracker is powered by an advanced AI engine that continuously analyzes real-time operating and environmental conditions to automatically select the most effective tracking strategy for maximum performance.
Intelligent Data Analysis
The TCU system combines multiple data sources, including sunlight conditions, weather information, wind speed, and temperature, to continuously optimize tracker positioning.
Even under changing weather conditions, such as cloudy skies, it can automatically adjust tracker angles to maintain efficient solar energy capture.
Adaptive Operating Modes
The system automatically adapts to different operating conditions throughout the day.
During normal weather, it follows an optimized tracking strategy to maximize energy production.
During early morning, late afternoon, or low-light conditions, it adjusts tracker angles to capture more available sunlight.
When shading between tracker rows may occur, the system activates an intelligent backtracking function to reduce shading losses and maximize land utilization.
Comprehensive Lifecycle Support
From project planning to long-term operation, Suzhou Ruitai provides professional support at every stage to ensure a smooth deployment and reliable performance throughout the life of your solar plant.
● Solution Planning: We carefully assess your project requirements, site conditions, and operational goals to develop a solution tailored to your needs.
● System Development: Our experienced R&D team continuously improves and refines our technologies to ensure reliable performance and long-term value for every project.
● Quality Manufacturing: We follow strict quality control standards throughout the production process, ensuring every hardware and software component meets the highest performance and reliability requirements.
● Installation and Commissioning: Our experienced engineers provide on-site deployment and system commissioning to ensure optimal performance and a smooth project launch.

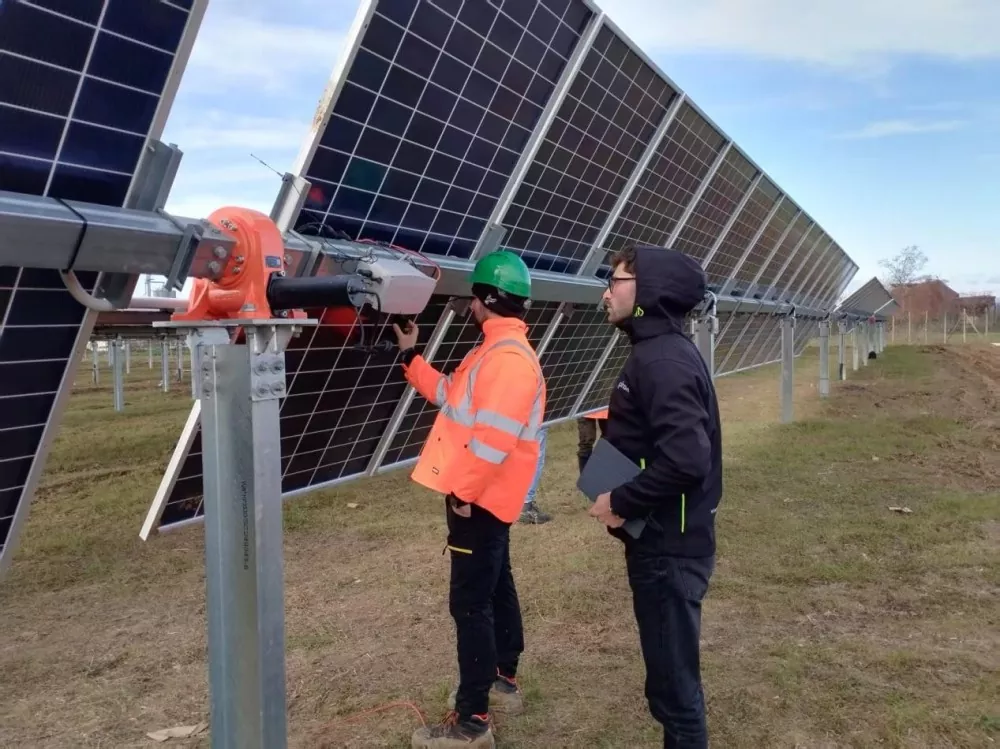

● After-Sales Support: We offer 24/7 technical support, ongoing system upgrades, and responsive service to help keep your solar plant operating efficiently for years to come.
Ruitai Certifications
Ruitai is a professional manufacturer and supplier of TCUs, NCUs, SCADA systems, and photovoltaic cleaning robots; we possess advanced technology and hold comprehensive certifications.
● ISO 9001 Certified: Built on internationally recognized quality management standards, with a strong focus on customer satisfaction, operational excellence, and continuous improvement.
● CE Certified: Independently tested and certified to meet European safety, health, and environmental requirements, ensuring reliable performance in global markets.
● HTW Certified: Verified through professional testing and inspection procedures, demonstrating compliance with recognized international safety requirements.
● Software Copyright Registration: Officially registered with the National Copyright Administration of China, providing verified intellectual property protection and full legal compliance.
FAQ
Q: What environments is the TCU suitable for?
A: The TCU features an industrial-grade design, making it suitable for use in desert PV plants, mountainous PV projects, and regions characterized by extreme cold, high heat, or coastal high-humidity conditions.
Specific protection ratings and environmental adaptability can be customized based on project requirements.
Q: Can the Ruitai Single-Axis PV Tracker TCU be integrated with SCADA systems from other brands?
A: Yes. Provided the communication protocols and interfaces are compatible, the TCU can interface with various SCADA platforms or third-party Energy Management Systems (EMS) to enable unified monitoring and management.
Q: What commissioning steps are required after installation?
A: The following steps are required:
● Power supply check
● Motor operation test
● Tracking direction calibration
● Communication parameter configuration
● TCU-to-NCU communication test
● SCADA data upload verification
● Safety protection function test
