Photovoltaic TCU Tracker

Traditional tracking systems often focus only on direct sunlight. Suzhou Ruitai, a professional manufacturer, uses an intelligent tracking algorithm that goes beyond this approach by taking direct, diffuse, and reflected sunlight into account.

Our Photovoltaic TCU Tracker continuously analyzes these conditions in real time and automatically adjusts the tracker to the optimal angle.

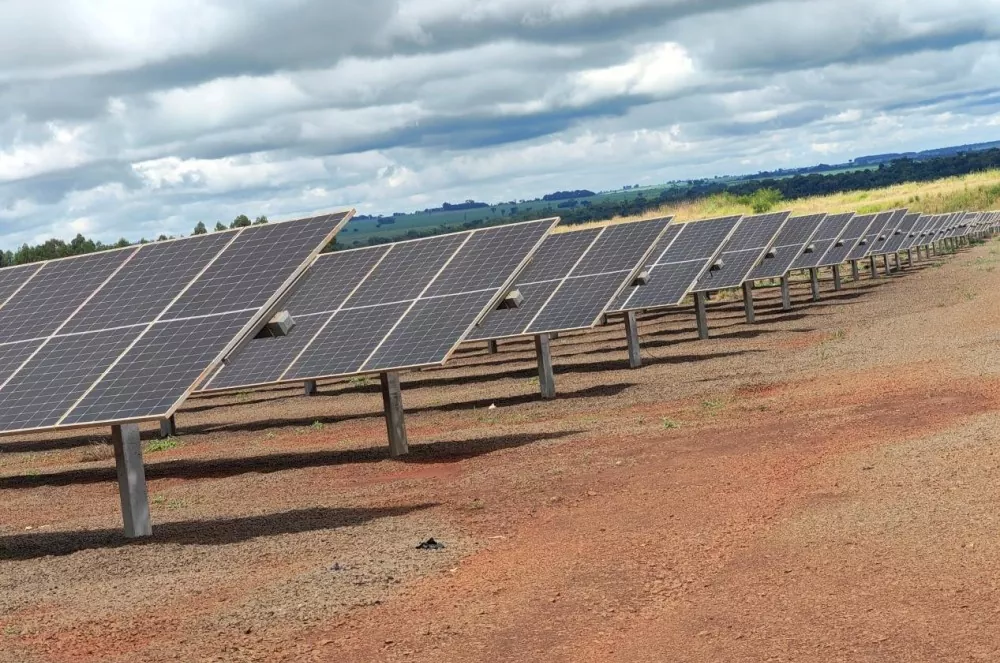

This comprehensive approach helps capture more available sunlight throughout the day, allowing solar power plants to generate more energy and improve overall performance.

Key Product Advantages

Suzhou Ruitai Photovoltaic TCU Tracker is designed to perform intelligently under changing weather conditions.

During cloudy, overcast, or rainy weather, the intelligent algorithm automatically adjusts the tracker to a flatter position. This allows the system to capture more available sunlight and maintain optimal energy production.

At the same time, it reduces unnecessary tracker movement, helping minimize mechanical wear and extend the service life of the equipment.

System Parameters

Mechanical Parameters

Electrical Parameters

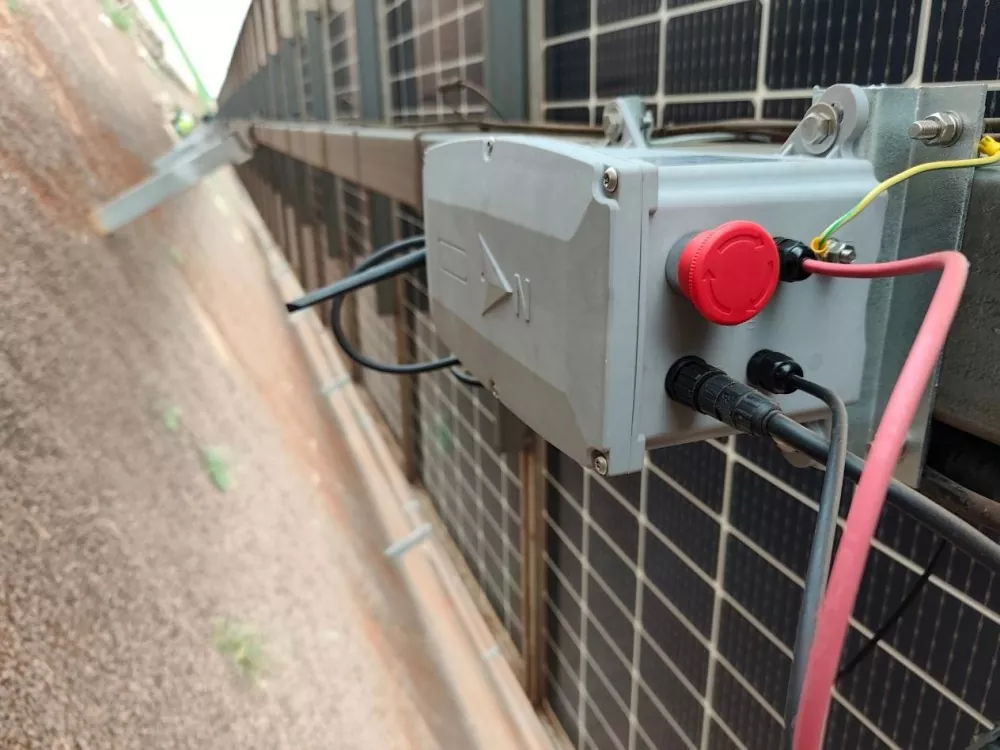

How Should the Installation Location for the Photovoltaic TCU Tracker Be Selected?

1. Height: Position at least 0.8m above the ground to prevent immersion in rainwater and obstruction by vegetation, while ensuring ease of access for O&M personnel.

2. Orientation: The mounting surface of the TCU Tracker's tilt sensor must be parallel to the tracker's axis of rotation; otherwise, angle feedback errors may occur.

3. Waterproofing: The standard Ruitai TCU features an IP65 protection rating; ensure the cable entry points face downward during installation to prevent rainwater from seeping in along the cables.

4. Heat Dissipation: Avoid exposing the TCU enclosure to direct sunlight; install a custom sunshield if necessary. Consider installing a cooling fan if the ambient temperature exceeds 50°C.

Protection Against Extreme Weather

As extreme weather becomes increasingly common, Photovoltaic TCU Tracker helps keep solar power plants protected with intelligent weather monitoring and response capabilities.

Equipped with a range of weather sensors, it continuously monitors local conditions in real time and quickly moves the tracker to a safe position when severe weather is detected.

To provide reliable protection under different weather conditions, the system offers four dedicated protection modes for high winds, snow, flooding, and hail.

This helps safeguard both the tracker structure and solar modules, ensuring safe, stable, and reliable operation over the long term.

Ruitai After-Sales Support

To give you complete peace of mind, Suzhou Ruitai provides a 5-year product warranty for our Photovoltaic TCU Tracker. Throughout the warranty period, our dedicated after-sales team offers comprehensive support to help ensure reliable system performance.

1. Free Repair and Replacement

If a product quality issue occurs during the warranty period, we provide free inspection, repair, and replacement of faulty components.

2. 24/7 Technical Support

Our dedicated support team is available around the clock via phone and email to assist with any technical questions or operational issues.

3. Regular Inspections and System Health Checks

Our technical specialists conduct routine site inspections and use platform data to assess system health, identify potential issues early, and help keep your equipment operating at its best.

4. Fast Response Service

When a service request is received, our team responds promptly and arranges engineer support as quickly as possible. For complex issues that cannot be resolved within the required timeframe, replacement parts of the same specification will be provided at no additional cost.

5. Operation and Maintenance Training

We provide practical training for your operations team, covering system operation, routine maintenance, and emergency response procedures to help improve maintenance efficiency and day-to-day management.
