Solar Controller TCU

The Ruitai Solar Controller TCU is a key component of an intelligent solar tracking system, that’s designed to improve power generation efficiency and optimize plant performance.

Unlike traditional fixed-tilt installations, which can experience energy losses due to changing sunlight conditions and complex terrain, our TCU continuously adjusts the photovoltaic modules position to maintain the optimal angle for solar energy capture.

Its advanced control capabilities help utility-scale solar plants achieve higher energy yield, reduced operational costs, and more reliable system performance, even in challenging environments such as mountainous regions, deserts, and high-temperature areas.

System Parameters

Mechanical Parameters

Electrical Parameters

What is Solar Controller TCU?

The performance of a photovoltaic power plant depends on its ability to capture the maximum amount of sunlight throughout the day.

Traditional fixed-tilt systems cannot continuously maintain the optimal angle to the sun, resulting in reduced energy generation and lower system efficiency. Factors such as changing sunlight conditions, terrain variations, and weather conditions can further impact overall plant performance.

To maximize energy yield, solar tracking systems automatically adjust the position of photovoltaic modules to follow the sun’s movement. The TCU serves as the core control unit of the tracking system, providing precise tracker control, intelligent protection functions, and reliable system operation.

By ensuring accurate tracking and stable performance, the TCU helps improve power generation efficiency and maximize the value of solar energy assets.

How Solar Controller TCU Works?

Ruitai Solar Controller TCU is the core control and execution unit of a solar tracking system.

Serving as the central hub connecting sensors, drive motors, and communication platforms, it uses intelligent algorithms to calculate the optimal tracking position and precisely control the drive motor, enabling the tracker to follow the sun's movement to maximize solar energy utilizations throughout the day.

Our high-performance TCU typically employ closed-loop control technology, continuously monitoring the actual position of photovoltaic modules and solar irradiance through photoresistor arrays, tilt sensors, and other monitoring devices. By comparing real-time operating data with target positions, the system automatically corrects deviations to maintain tracking accuracy.

In addition, multiple extreme weather protection strategies are integrated into the controller. Combined with monitoring data from the intelligent cloud platform, the system enables automatic protection of photovoltaic power plants, ensuring safe, stable, and reliable operation under various environmental conditions.

Installation Tips

For optimal performance, install the controller in a dry and well-ventilated location protected from direct sunlight and water ingress.

Adequate clearance should be maintained above and below the controller (recommended minimum of 150 mm) to ensure proper natural airflow and heat dissipation.

During installation, the wiring sequence must be strictly followed. Always connect the battery first so the controller can start up and detect the system voltage. Next, connect the solar panels, and finally connect the load.

Never reverse the positive and negative terminals or create a short circuit, as this may cause equipment damage, fire, or explosion.

To enhance system protection, it is recommended to install appropriately rated fuses or circuit breakers are recommended for all terminals and cables.

After installation and power-up, verify that the indicator lights and operating status are functioning normally before placing the system into operation.

Application Scenario

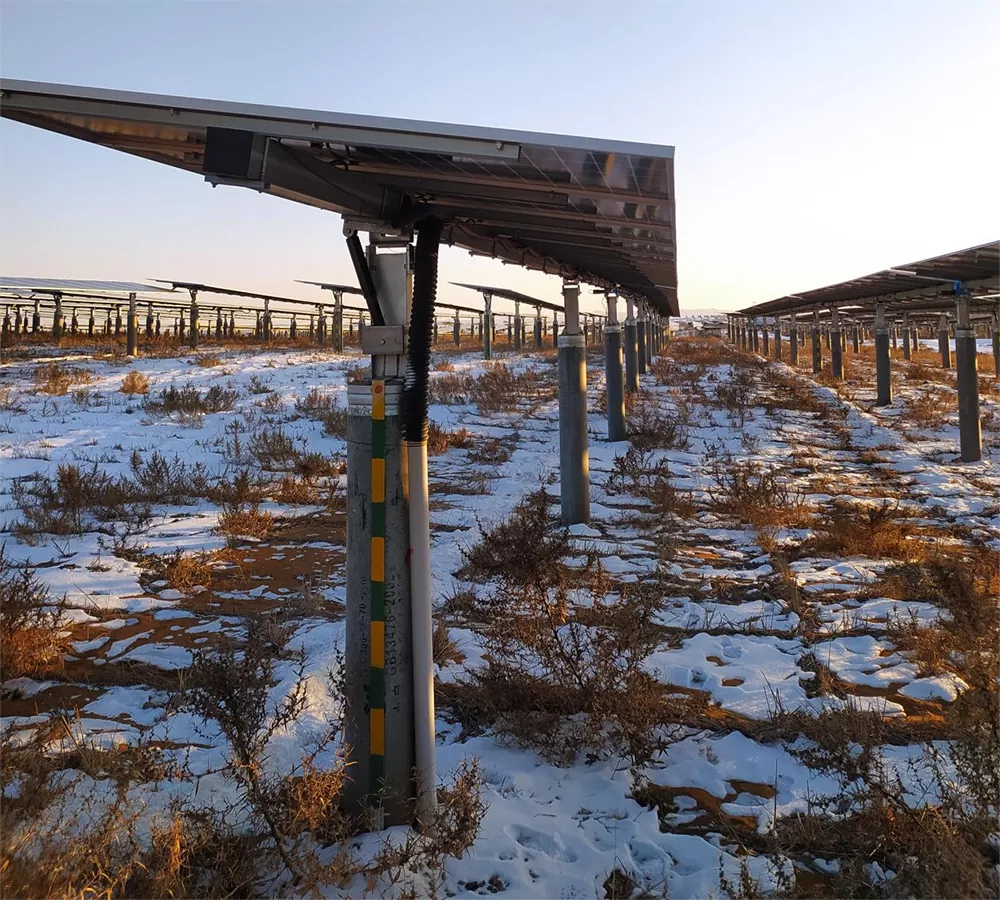

Ruitai TCU is widely used in a variety of photovoltaic tracking systems. It is particularly well suited for utility-scale solar power plants and projects located in challenging terrain conditions.

In mountainous projects with significant elevation changes, the Solar Controller TCU utilizes its built-in intelligent backtracking algorithm and self-learning 3D terrain mapping capabilities to minimize shading effects and improve power generation.

In harsh environments such as deserts and Gobi regions with strong winds, large temperature fluctuations, frequent hailstorms, or heavy snowfall, the TCU can work together with meteorological data to implement proactive protection strategies, such as automatically stowing the tracker during high winds or moving to a large-angle protective position when hail warnings are detected.

By reducing the need for manual intervention and enhancing system protection, the TCU helps ensure reliable operation and long-term asset security under demanding environmental conditions.
