Multi-Axis Tracking Controller

Suzhou Ruitai's Multi-Axis Tracking Controller is built on an industrial-grade architecture, featuring IP65/IP66 protection and a wide operating temperature range of -40°C to +85°C.

It is designed to withstand harsh conditions, including deserts, high-altitude regions, and coastal areas. Supporting both 4G/5G and fiber-optic communication, the system ensures stable and efficient connectivity, while its low-power, self-sustaining design delivers dependable long-term operation.

Operating Principle

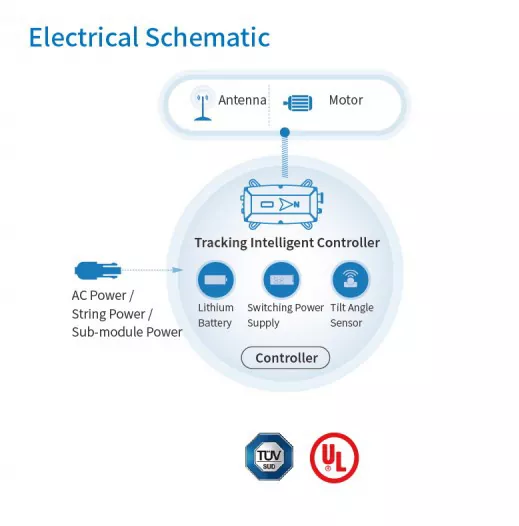

The Multi-Axis Tracking Controller (TCU) adjusts the angle of the PV mounting structure in real-time by integrating solar position algorithms, sensor feedback, and motor control technology.

Its basic operational workflow is: Solar position calculation → TCU generates control commands → Drive motor adjusts structure angle → Sensors provide actual position feedback → TCU corrects operational status → Data upload to NCU/SCADA.

1. Solar Position Data Acquisition

The TCU calculates the sun's trajectory based on time, latitude and longitude, date, and astronomical algorithms.

2. Tracking Structure Motion Control

The TCU sends control signals to the drive system, activating the motor and reduction mechanism to adjust the PV module angle, ensuring the modules remain oriented toward the optimal direction for sunlight exposure.

3. Position Feedback and Intelligent Calibration

The system detects the current status of the mounting structure using angle sensors, limit switches, and position feedback devices, automatically correcting any deviations.

The TCU also executes protective strategies based on environmental conditions—such as high-wind protection (Storm Stow), anti-collision protection, emergency shutdown protection, and limit position protection—to ensure safe operation.

TCU Key Advantages

Enhanced Safety: Supports module-level or string-level rapid shutdown, helping meet modern fire safety standards and improve system protection.

Compact Design: Lightweight and easy to install, with minimal impact on existing rooftop structures and waterproofing.

Smart Management: Manage and monitor the system through a mobile app, making energy management simple and efficient.

Proven Experience: Successfully deployed across Asia, Africa, and other regions, with extensive experience in large-scale solar projects.

Reliable Quality: We follow strict quality control and efficient production processes to ensure consistent performance and dependable product quality.

Higher Energy Yield: It is proven to increase energy generation by 15%–30%, helping maximize the value of every ray of sunlight.

System Parameters

Mechanical Parameters

Electrical Parameters

Application Scenarios

Why Choose Ruitai

At Ruitai, we believe solar tracking should be both accurate and reliable. Our flagship tracking system combines advanced solar tracking algorithms with AI-powered control to keep trackers operating at the best angle throughout the day.

Whether facing strong winds or changing sunlight conditions, the system automatically adjusts to maintain safe, stable, and efficient operation, helping maximize energy production and long-term performance.
