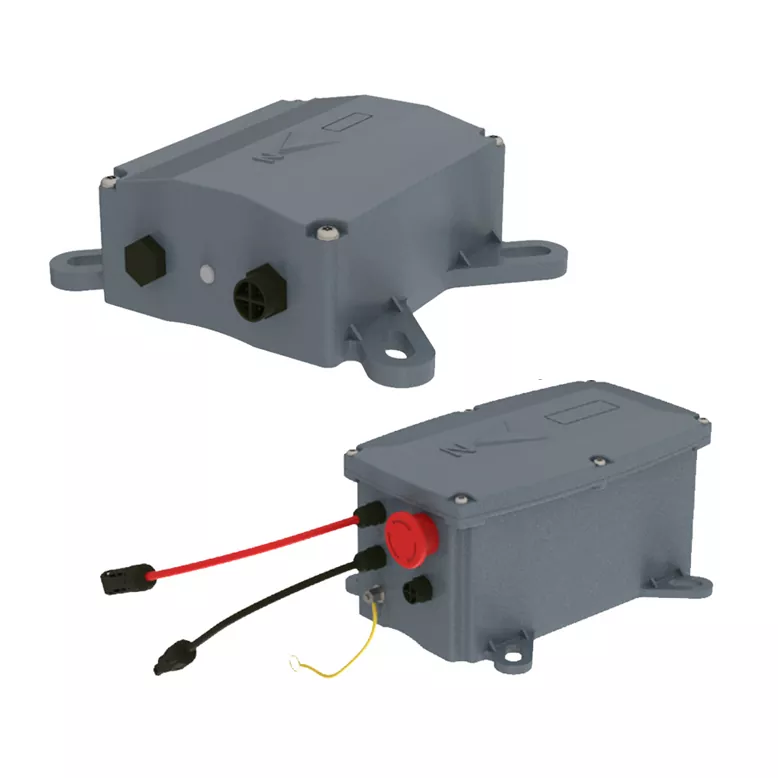

PV Module Tracking Controller

As the "smart brain" of a PV power plant, Ruitai's PV Module Tracking Controller helps the system shift from passive response to proactive prediction.

With AI prediction algorithms, it optimizes performance under complex weather conditions, time-of-use electricity pricing, and different terrain environments, delivering higher power generation gains and better economic returns for PV power plants.

Core Working Principle and Hardware

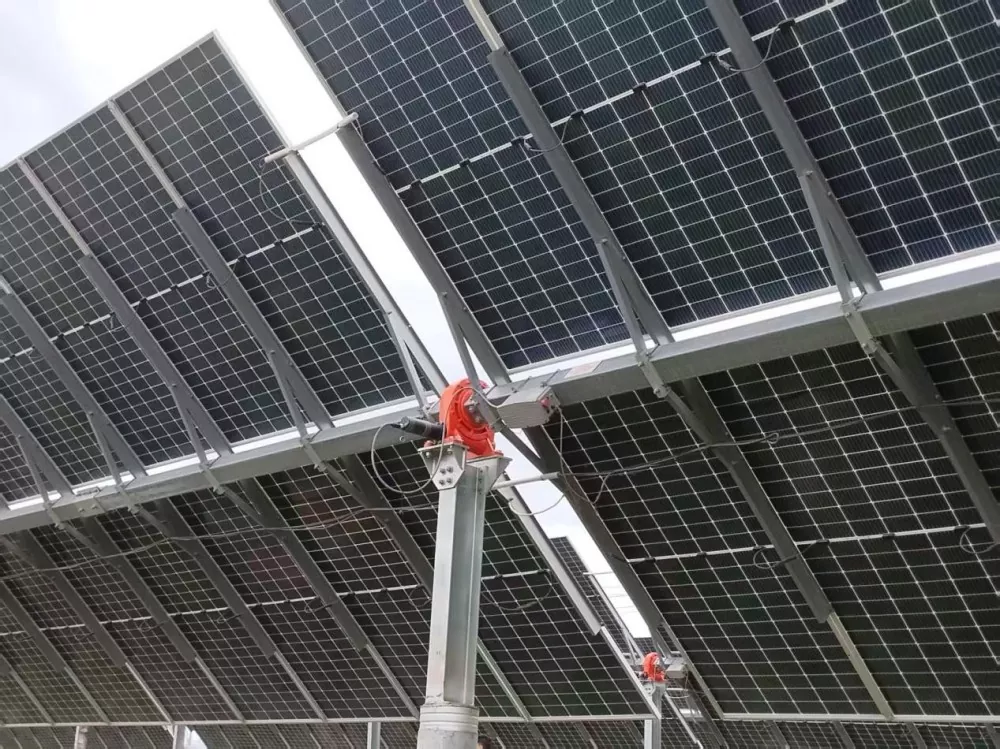

The intelligent PV tracker is an upgrade from traditional fixed PV mounting systems. By adding an intelligent tracking device to PV panels, it allows them to adjust their angle automatically and stay in the optimal position to receive sunlight, helping improve power generation efficiency.

The tracker combines precise mechanical design with intelligent algorithms. Its main frame is usually made of high-strength hot-dip galvanized steel, providing strong resistance to wind, snow loads, and hail impact.

For tracking control, the system uses an astronomical algorithm to calculate the sun's path accurately, while light sensors monitor sunlight intensity in real time. This creates closed-loop control for precise and stable solar tracking.

System Parameters

Mechanical Parameters

Electrical Parameters

Intelligent Control and Protection Mechanism

The PV module tracking controller acts as the brain of a PV power plant, with multiple operating modes to handle complex environments.

1. Intelligent Optimization

By collecting data such as string voltage and current and combining it with AI big data analysis, the system can identify shading, cloudy weather, rain, and other changing conditions.

It then adjusts the module angle automatically to help achieve maximum power generation.

2. Severe Weather Protection

The TCU integrates sensors for wind speed, rainfall, and other weather conditions. When strong wind, heavy rain, heavy snow, or other extreme weather is detected, it automatically activates the protection mechanism and moves the PV panels to a horizontal or specific safe position to prevent mechanical damage.

3. AI Prediction Algorithms

The intelligent tracker helps the system shift from passive response to proactive prediction, optimizing PV power generation across multiple conditions.

4. AI Dynamic Optimization for Cloudy Weather Conditions

Traditional trackers rely on fixed astronomical algorithms, while the AI algorithm in this TCU can process scattered irradiance, local cloud cover, and terrain effects in real time.

Using a vision transformer model based on sky images, the AI can accurately predict cloud movement and locate the sun in unpredictable weather such as cloudy or rainy conditions, greatly improving energy capture efficiency.

5. Time-of-Use Pricing

The AI algorithm focuses not only on maximizing power generation, but also on maximizing revenue.

By working with time-of-use electricity pricing, the system can flexibly adjust the PV panel angle during higher-price periods in the morning and evening, increasing power generation during high-value hours and improving the weighted selling price of each kilowatt-hour.

6. Terrain Adaptation and Bifacial Gain

For irregular or steep terrain, the AI software analyzes different on-site data sources together to achieve precise terrain-adaptive control.

For bifacial PV modules, the AI can also adjust the tilt angle dynamically to capture more reflected light on the rear side, further improving overall power generation benefits.

7. Longer System Life

To reduce motor energy consumption and mechanical wear caused by frequent adjustments, the AI algorithm smooths sensor data using methods such as moving averages.

This helps prevent unnecessary responses to short-term weather changes. The system can also adjust tracking strategies for specific periods, such as sunrise and sunset, reducing unnecessary actuator movement while improving power generation, maintaining stability, and keeping energy consumption low.
