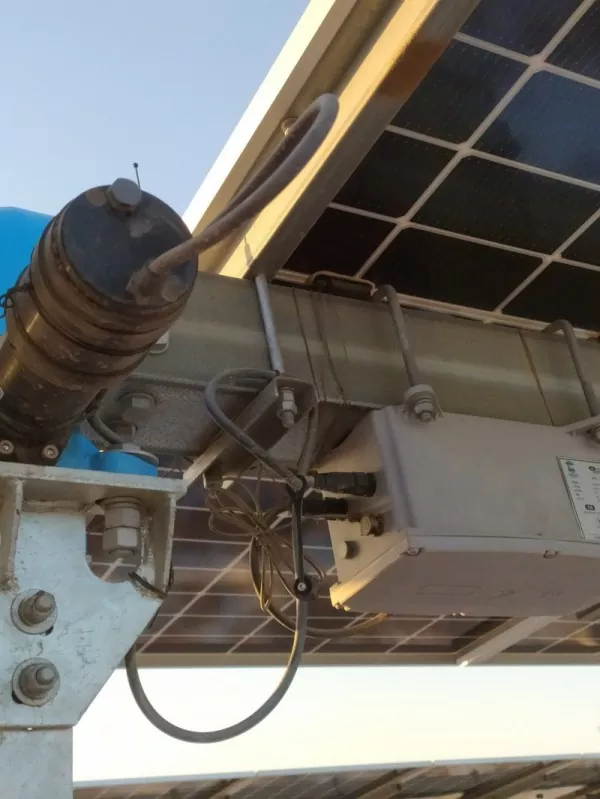

Single-Row PV Tracker

Ruitai's Single-Row PV Tracker collects real-time data such as string voltage and current, and uses AI big data analysis to identify shading, cloudy weather, rain, and other changing conditions.

It then adjusts the module angle automatically to help PV panels generate more power while keeping the equipment safe, even in complex environments.

Core Product Advantages

1. High-Strength Hardware

The main frame of the single-row PV tracker uses high-strength hot-dip galvanized steel, offering excellent resistance to wind, snow loads, and hail impact.

In its control logic, the system uses an astronomical algorithm to accurately calculate the sun's path and combines it with light sensors to detect sunlight intensity in real time.

This creates closed-loop control for accurate and stable solar tracking.

2. Proactive Protection in Extreme Weather

The system is equipped with high-precision sensors for wind speed, rainfall, and more, and it uses AI big data to predict weather changes hours in advance.

When strong winds, hail, or heavy snow hit, AI will automatically trigger protection measures:

Strong winds: It automatically adjusts to a protective angle to reduce wind resistance.

Hail: It goes into a large-angle protective position to effectively reduce hail impact.

Heavy snow warning: An alert is triggered so snow can be cleared in time, preventing snow from collapsing the components.

3. Intelligent Optimization and Closed-Loop Control

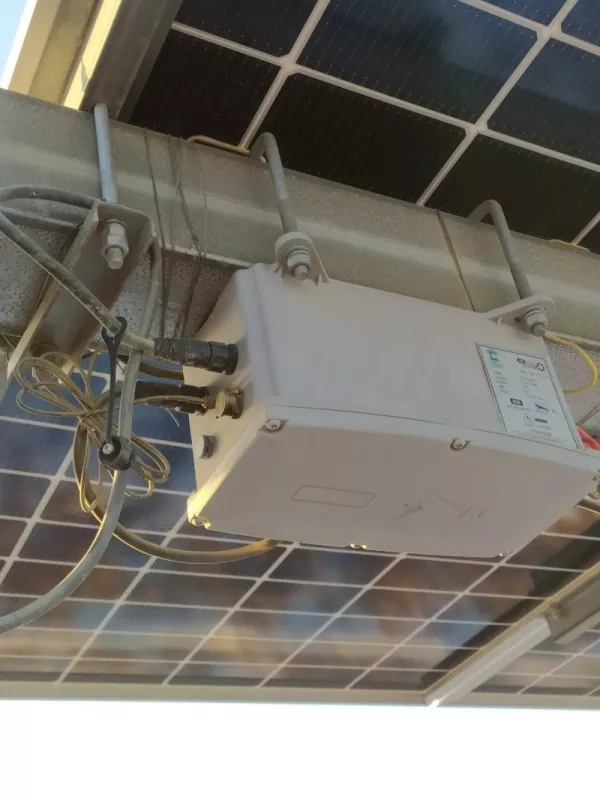

The Ruitai TCU collects real-time data such as string voltage and current, and uses AI big data analysis to identify shading, cloudy weather, rain, and other changing conditions.

It then automatically adjusts the module angle to help PV panels generate more power while keeping the equipment safe, even in complex environments.

4. Stable Operation

Whether under strong sunlight, heavy wind, or rain, the TCU's intelligent protection mechanism stays active.

It protects the equipment from mechanical damage in harsh weather and quickly returns to the optimal tracking position when conditions improve.

This helps reduce weather-related power losses and supports both system safety and long-term returns.

System Parameters

Mechanical Parameters

Electrical Parameters

For Which Types of Projects Are Single-Row PV Trackers Suitable?

1. Large-scale ground-mounted PV plants: Suitable for utility-scale solar plants and massive centralized PV projects.

2. Mountainous PV projects: Maintains excellent layout flexibility even on slopes or undulating terrain.

3. High-reliability projects: Ideal for projects requiring continuous operation or zoned plant management.

4. High-latitude regions: Precise tracking by the TCU enhances power generation performance under conditions of low solar elevation angles.
