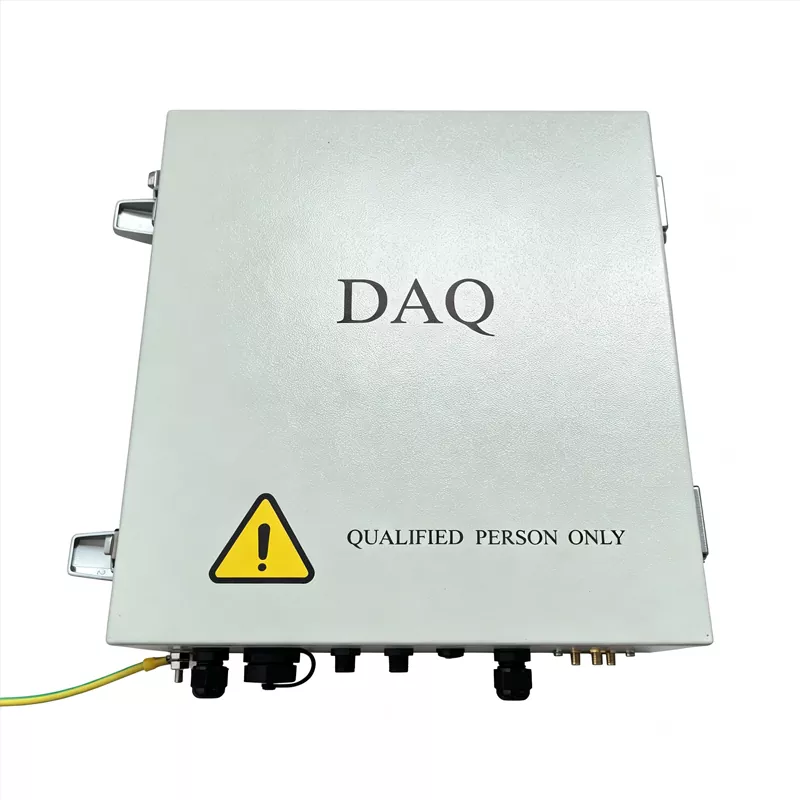

Intelligent Solar Communication Box

Ruitai can offer Intelligent Solar Communication Box for communication networks and solar tracking systems in large-scale solar power plants. Built for harsh outdoor conditions and strong electromagnetic interference, it features industrial-grade hardware, a wide operating temperature range of -40°C to 85°C, IP65 protection, and EMC Level 4 immunity.

In addition to its communication gateway functions, the NCU serves as a core execution unit for AI-powered solar tracking and asset protection.

What Is the Core Function of the Intelligent Solar Communication Box?

Within the hierarchical control architecture of a photovoltaic (PV) power plant, the Intelligent Solar Communication Box (NCU) plays a pivotal role in bridging upper-level and lower-level systems:

Upstream (connecting to SCADA systems/the cloud): It transmits the operational status of equipment across the designated area to the plant's central monitoring center (SCADA system) via industrial fiber-optic ring networks, Ethernet (Modbus TCP, IEC 60870-5-104), or 4G/5G networks.

Downstream (connecting to TCUs/cleaning robots): The NCU centrally controls—via wireless (e.g., LoRa, Zigbee) or wired (RS485) connections—dozens to hundreds of TCUs (Tracker Control Units) and fully automated PV cleaning robots within the area.

Full Specifications Table

▷ Characteristic parameters

▷ Functional parameters

▷ General parameters

AI-Powered Solar Tracking for Precise Zone Control

The Intelligent Solar Communication Box enables intelligent solar tracking not through a single device, but as a zone-level control hub and communication bridge.

Real-Time Data Collection: It connects to and manages TCUs across each zone, collecting module angle, power generation, wind speed, irradiance, and other micro-weather data in real time.

AI Tracking Control: AI algorithms analyze shading, cloudy conditions, and other weather factors to calculate the optimal tracker angle and send commands automatically, helping maximize energy capture.

Extreme Weather Protection: When strong winds, heavy snow, or other extreme weather conditions are detected, the NCU can automatically activate three-level wind protection, a high-angle hail-protection position, or one-click snow removal mode to protect equipment safety.

Seamless Multi-Mode Switching: It supports remote and precise control through SDS mode, automatic mode, manual mode, and maintenance mode.

Device-Edge-Cloud Architecture with Multi-Protocol Support

The NCU operates at the edge layer of the system. It works efficiently with TCUs through Zigbee and sends data upward to SCADA platforms, remote O&M software, and mobile apps. It supports Modbus, IEC 60870-5-104, MQTT, and other communication protocols, allowing local data to be converted into the formats required by dispatch systems.

The NCU processes data locally to reduce cloud workload with edge computing capability. It also includes both hardware and software encryption, along with a vertical encryption module, to help ensure secure data communication.

Standardized After-Sales Support

After an NCU module is replaced, it must be reconfigured to match the system. Ruitai provides a complete O&M solution:

Automated Configuration: Configuration parameters can be deployed through a mobile app or computer, reducing manual work and the risk of errors.

Accurate Mapping and Commissioning: The system sends angle commands and compares them with actual rotation angles to accurately map the NCU, TCU, and PV array.

Firmware Upgrades and Safety Procedures: One-click updates to the latest official firmware help resolve compatibility issues. All work follows safety procedures, including the use of insulated tools. After replacement, the intelligent O&M platform's "Auto Search" function confirms that the module is connected.

FAQ

Q: What happens to the tracker when the Intelligent Solar Communication Box loses power? Is there a backup power supply?

A: It utilizes a built-in or external backup lithium battery (recommended capacity ≥ 7Ah) to keep the communication module running for several hours after a power outage, ensuring it can receive and execute emergency stow commands.

Note that the battery powers only the communication and control systems, not the motors. It is recommended to pair this with a solar charging panel for battery trickle charging, particularly for remote areas lacking grid access.

Q: Can the NCU support remote firmware upgrades?

A: NCUs from mainstream brands support remote OTA (Over-the-Air) upgrades, allowing new firmware to be deployed via SCADA systems or cloud platforms without on-site intervention. It is advisable to verify this capability during product selection to ensure future access to tracking algorithm optimizations, bug fixes, and security patches.

Q: What is the operating temperature range of the NCU?

A: Ruitai’s NCU operates within a range of -40°C to +70°C and features an IP65 protection rating, making it suitable for extreme environments such as high-temperature deserts and frigid regions.

However, special attention is required in the following scenarios:

High-temperature deserts: Ensure adequate cabinet heat dissipation and avoid direct sunlight; install a sun shield if necessary.

Frigid regions: Consider the low-temperature performance of the backup lithium battery and select a low-temperature-rated model.

Coastal areas (salt spray): Use stainless steel enclosures or apply anti-corrosion coatings.
